EVO-H MRH

Hygienic recirculation modules

Certificates
PL-EN 1886:2008
ISO 13053
ISO 9001
ISO 14001
ETL
CE

EVO-H MRH components

1
2
3
4
5
6
7
8
1
Framework
  • Frameless technology
2
Panels
  • Made of 0.7 mm U-shaped stainless steel sheet
  • Housing thickness 25 mm
  • Non-combustible mineral wool filling of class A2-S1
  • Inspection lids, equipped with handles, attached to the lock housing
  • Cover-and-cover flat seal
3
Guide vanes
  • Stainless steel bent frame
  • Height 80 mm
4
Drain pan
  • Not applicable
5
Guide vanes
  • Made of stainless steel sheet
6
Air dampers
  • Not present (only as part of the air network, class 4 tight throttle)
7
Connections
  • Flexible spigot with duct connection profiles
8
Additional equipment
  • Dumbo" terminals for connecting impulse tubes for pressure measurement, mounted on the module housing
  • Hygienic grille at the inlet. Note: It is possible to make the EVO-H MRH Recirculation Module in the EVO-H Hygienic Air Handling Unit technology, in case of devices installed outside the operating room, where the air is cleaned.

Functions performed

Close
Secondary filter
SF
Functions and application

application

An air-conditioning and ventilation systems with standard purity requirements as preliminary filter

An air-conditioning and ventilation systems with strict purity requirements as preliminary and secondary filter

An air-conditioning and ventilation systems with standard or strict purity requirements as the final filtration stage

Catching fat particles and heavy pollutants (metal filter)

type

Metal plate filter

G2 - ISO COARSE

Plate filter:

G4 - ISO COARSE

M5 - ISOePM10-70%

Minipleat filter:

M5 - ISOePM10-70%

F7 - ISOePM2,5-60%

F9 - ISOePM1-80%

Bag filter:

M5 - ISOePM10-50%

F7 - ISOePM2,5-65%

F9 - ISOePM1-70%/80%
Construction

metal filter

Multi layer mesh covered on both sides with galvanized steel mesh mounted in 50mm thick frame

Filteration mesh made of galvanized steel

plate filter

Filter textile covered on both sides with galvanized steel mesh

Mounted in 50mm thick frame

Filter textile made of synthetic polyester filaments
minipleat filter

Mini pleat filter packages with hot melt separators

Mounted in 50/100 mm thick frame

Glass or synthetic fabric refill (100% polypropylene)

bag filter

Pockets sewn and placed on wire truss; bags lenght 300/500mm

Mounted in 25mm thick frame; eccentric crimping

Three-layer synthetic non-woven, polypropylene, using micro fibres
Parameters

 (acc. EN 13053+A1:2011 and EN 779:2012)

metal filter

Filtration grade Am: 80%

End pressure drop Δp: 120Pa

Maximum air velocity v: 4,2m/s

Maximum working temperature: 300°C

plate filter

Filtration grade Am: 82% ÷ 92%

End pressure drop: Δp: 150Pa ÷ 200Pa

Maximum air velocity v: 4,2m/s

Maximum working temperature: 90 ÷ 100°C
minipleat filter

Filtration grade Am: 95% ÷ 99%

Final pressure drop: Δp = 150Pa ÷ 200Pa

Maximum air velocity v: 4,2m/s

Maximum working temperature: 80°C

bag filter

Filtration grade Am: 95% ÷ 99%

Final pressure drop: Δp = 200Pa ÷ 300Pa

Maximum air velocity v: 3,7 ÷ 4,6m/s

Maximum working temperature: 90 ÷ 100°C
Close
Fan set
VF
Functions and application

Application

  • Low and medium pressure ventilation and air-conditioning systems with overall pressures up to 2 000Pa
  • Medium pressure ventilation and air-conditioning systems with overall pressures up to 3 000Pa (marine industry EVO-M)
  • Applied as a single or multi fan (up to 6 fans sets) solution depends on AHU size and pressure drop



Type

  • AC fan set: SWSI centrifugal fan without casing, one-way suction, PLUG type, with backward curved blades
  • EC fan set: SWSI centrifugal fan without casing, one-way suction, PLUG type, with backward curved blades
  • AC fan set (EVO-M marine execution): DWDI centrifugal fan with casing, two-way suction, with backward curved blade
Construction

AC fan set

  • Fan and motor set on common frame, insulated from unit structure by rubber shock absorbers
  • Direct drive – impeller mounted on motor shaft
  • TEFC single speed motors conforming to IEC standard
  • Suitable for supplying by VFD (variable frequency drive) – optional accessory



EC fan set

  • Fan and motor set on common frame assemled directly to AHU diaphragm
  • Direct drive – impeller mounted on motor shaft
  • Single speed motors conforming to IEC standard
  • Built- in speed amd monitoring controller



AC fan set (EVO-M marine execution)

  • Fan & motor set on common frame, insulated from unit structure by rubber shock absorbers belt drive
  • TEFC marine executiony single speed or two speed motors conforming to IEC standard
  • The motor assambled on tension support
  • Suitable for supplying by VFD (variable frequency drive) – optional accessory
  • The construction and fan epoxy coated protected



Parameters

AC fan set

  • Rated voltage: 3x400V / 50Hz
  • Rated power: 0,75 kW ÷ 15 kW
  • Protection type: PTC
  • Motor winding insulation class: F (matching with frequency converter)
  • Bearing lifecycle: L10 = 20000h / L50 = 100000h
  • Protection class: IP55
  • Efficiency class: IE2 / IE3
  • VFD output frequency range: 10 -100 Hz
  • Min. / max working temperature: -30°C ÷ 55°C



EC fan set

  • Rated voltage: 1x230V / 3x400V / 50Hz
  • Rated power: 0,5 kW ÷ 11,9 kW
  • Motor winding insulation class: B/F respectively (matching with EC controller)
  • Bearing lifecycle: L10 = 40000h / L50 = 200000h
  • Protection class: IP54 / IP55 respectively
  • Efficiency class: above IE3
  • A corresponding sensor with standard analogue output (0 ÷ 10 V or 4 ÷ 20 mA)
  • The open protocol standard RS485 MODBUS-RTU
  • Min. / max working temperature: -25°C ÷ 60°C



AC fan set (EVO-M marine execution)

  • Rated voltage: 1x230 / 3x400V / 3x440 / 3x690 - 50/60Hz
  • Rated power: 0,75 kW ÷ 22,5 kW
  • Protection type: PTC
  • Motor winding insulation class: F (mating with frequency converter)
  • Bearing lifecycle: L10 = 20000h / L50 = 100000h
  • Protection class: IP55
  • Efficiency class: IE2
  • VFD output frequency range: 10 ÷ 100 Hz
  • Min. / max working temperature: -30°C ÷ 55°C



POWER COEFFICIENT DEPENDS ON WORKING TEMPERATURE

Max. ambient temp. °C

30

35

40

45

50

55

60

P/PN %

105

102

100

97

93

87

82
Close
Silencer
SL
Functions and application

Application

  • Installed in-to the AHU to ensure noise reduction downstream of the fan set



Type

  • SLC_STD (standardowy)
  • SLC_HEFF (wyższa skuteczność)
Construction
  • The block is fitted with silencing cartridges made of non-flammable mineral wool, 100 or 200mm thick
  • The surface of wool insert protected with veil
  • Mineral wool fulfillment is built by galvanized metal sheet frame (add. pliester coated EVO-H)
Parameters

Max. permitted air velocity: v = 4,5m/s

Accesories

Roof / Intake / Outtake

  • For outside unit is delivered roof and component of the intake and outtake
  • Components with water drainage to the side opposite from the viewing side can be additionally installed on AHU



Door Locks and Handles

  • Easy to use door locks and handles ensure safe unit maintenance



Inspection window

  • Inspection window enables to observe unit‘s internal operation. The diameter of plastic porthole is 200mm
  • The porthole could be use with darkwork (in option)



Internal lighting

  • Internal lighting enables to observe unit‘s internal operation through inspection window.
  • Economy light is used with switch outside the unit
SF
Secondary filter
VF
Fan set
SL
Silencer

Application

Healthcare facilities
Pharmaceutical industry
Electrical and optical industry
Laboratories

Technical characteristics

The EVO-H-MRH recirculation modules are designed to clean the recirculation air in the operating room and other rooms with high hygienic requirements. Amount of air that is supplied to the air-conditioned clean room is increased but the use of the module allows to reduce the size of the AHU system in the operating room (including the air conditioning unit) and to save operating costs. The devices are installed in the operating room or in adjacent rooms which also need the purified air. The modules are compatible with the NSL laminar ceiling equipped with connections and additional air channel. The recirculation modules are produced in two sizes. There are two options for mounting the air supply connection: upwards and from the front. A radial fan with forward curved blades, double-sided suction, directly driven with an EC motor, is used to force the airflow. The silencer’s lever is made in a hygienic version, easily disassembled from the module’s housing. Compact filters F7 or F9 class (according to PN-EN 779) or equivalent according to PN-EN ISO-16890:2017 are used for air purification. There is a hygienic exhaust air grille of GWB-G5 type installed at the inlet to the filtration section.

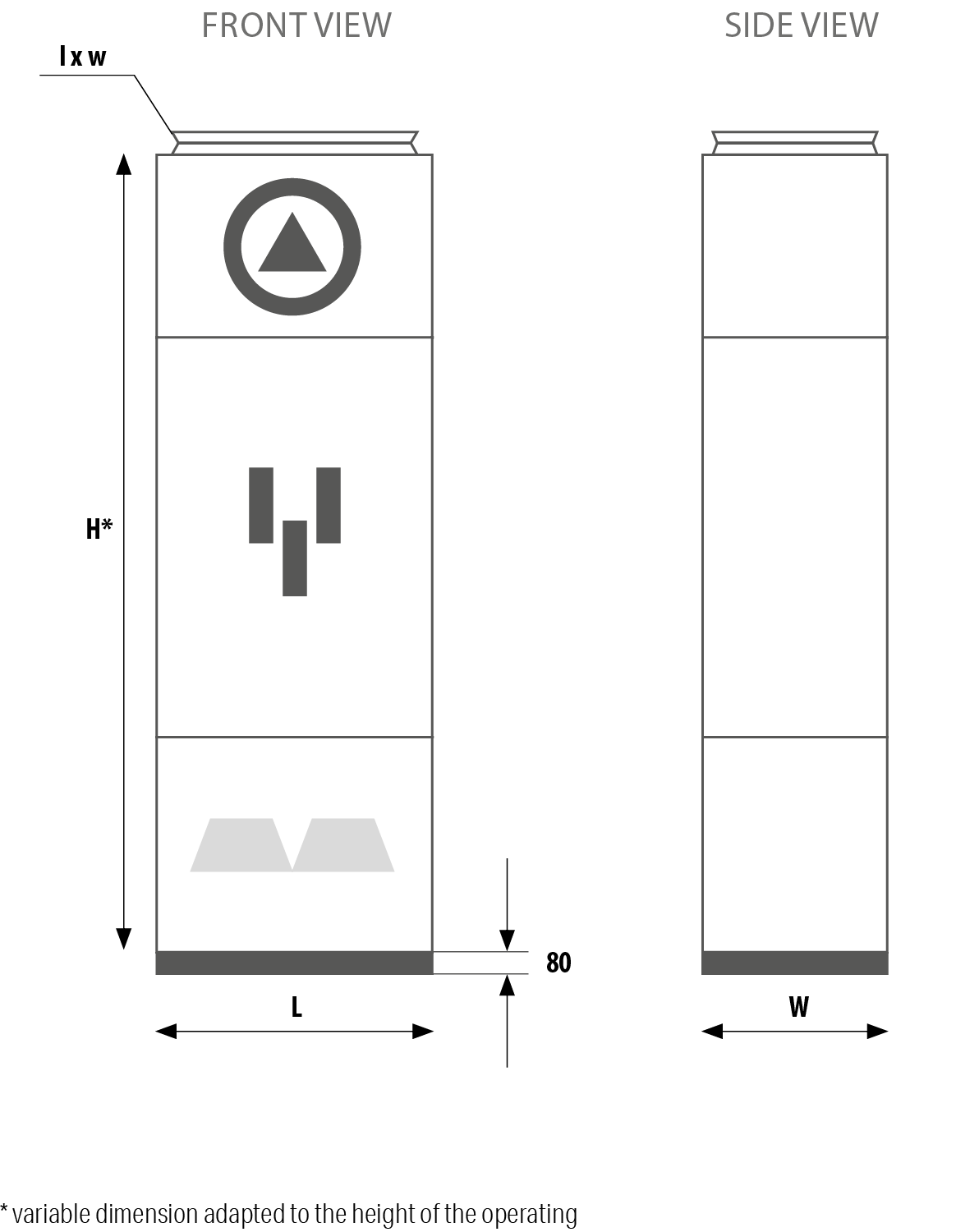

Technical data

EVO-H MRH

MRH01

MRH02

H [mm]*

2 450÷2 900*

2 450÷2 900*

L [mm]

700

1 000

W [mm]

550

550

Fan power [W] / Current [A] / Voltage [V]

500/2,2/1x230V

940/1,6/3x400V

Pipe dimension l x w [mm]

650x335

950x335

Weight [kg]

150

210
