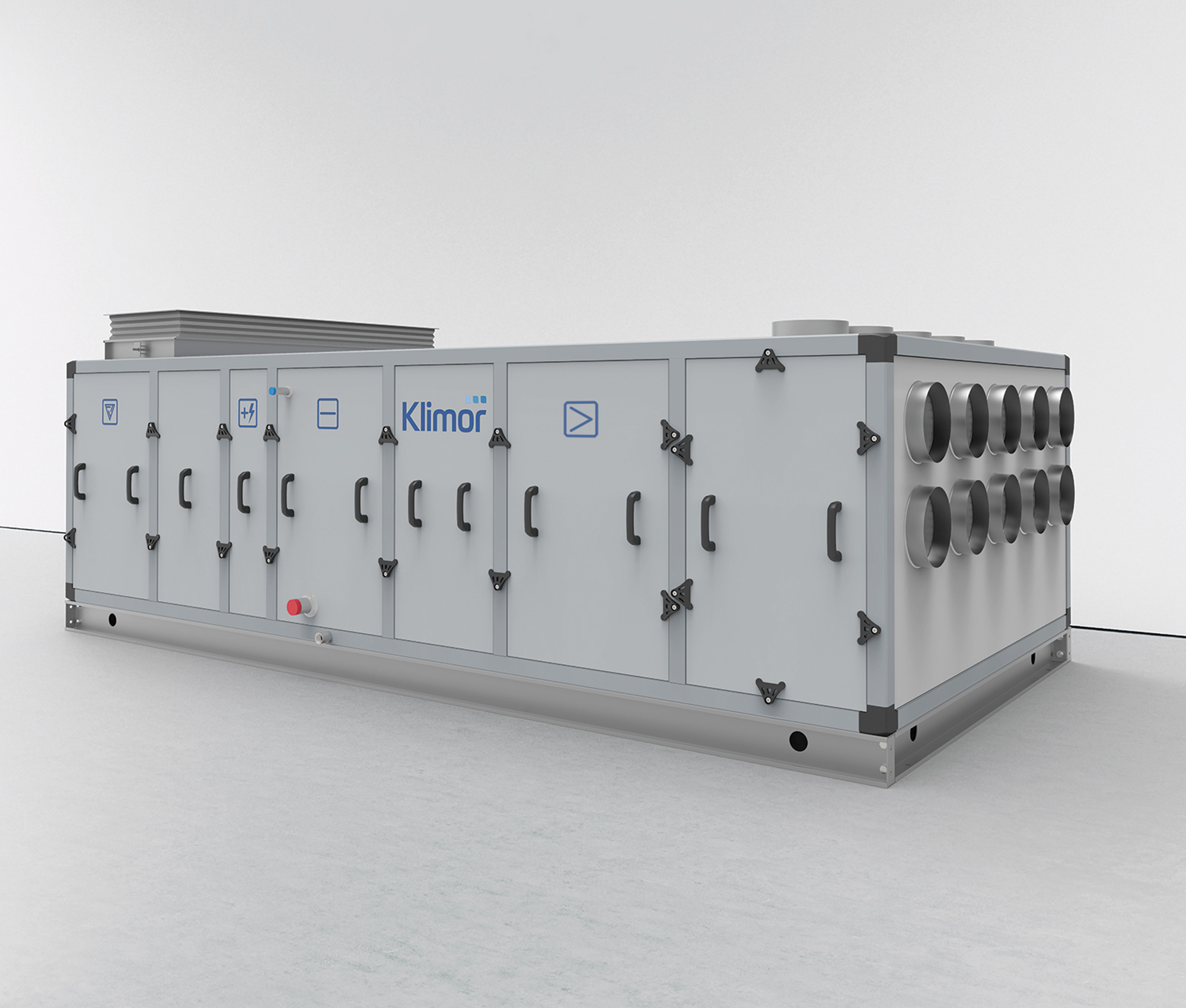

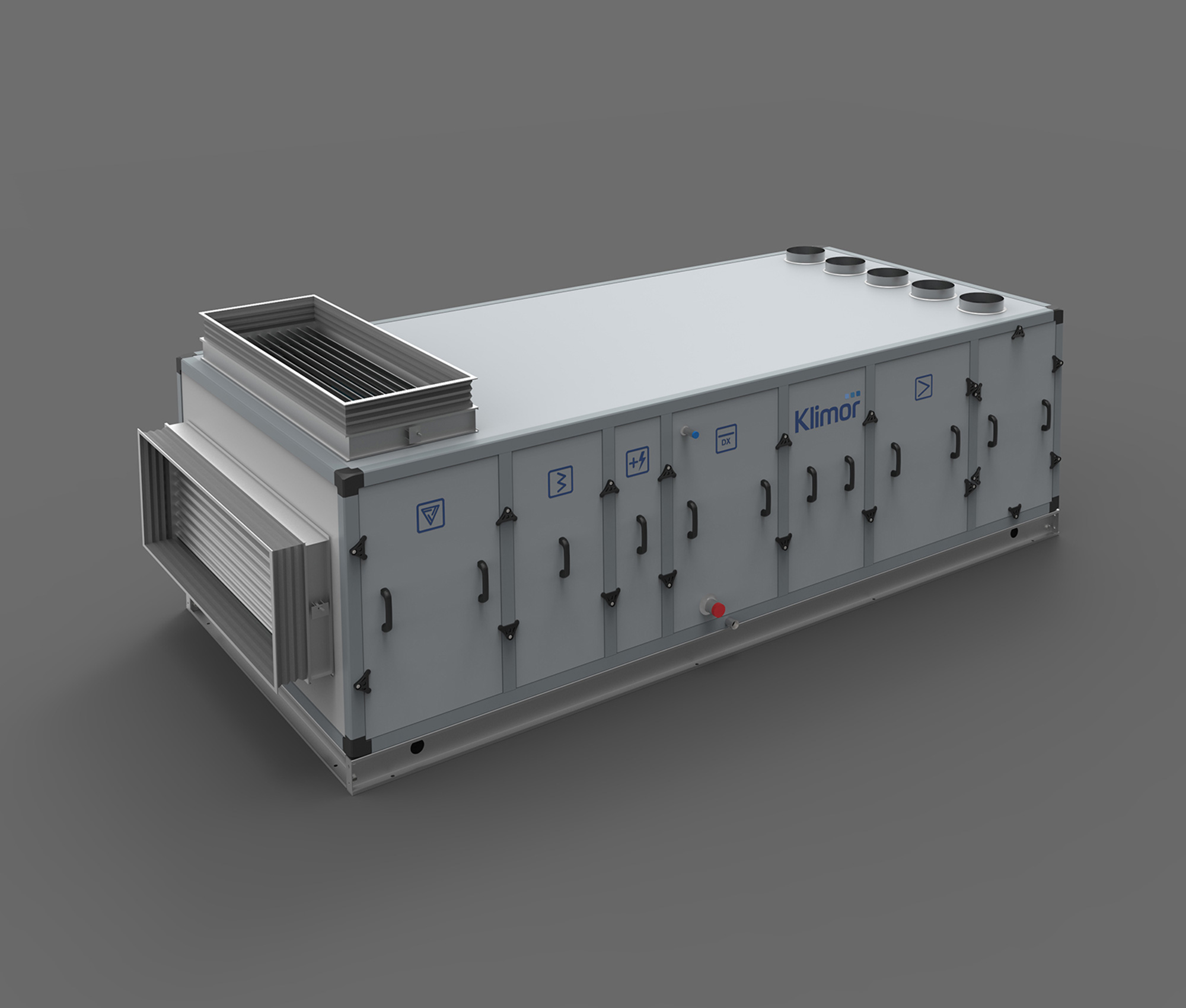

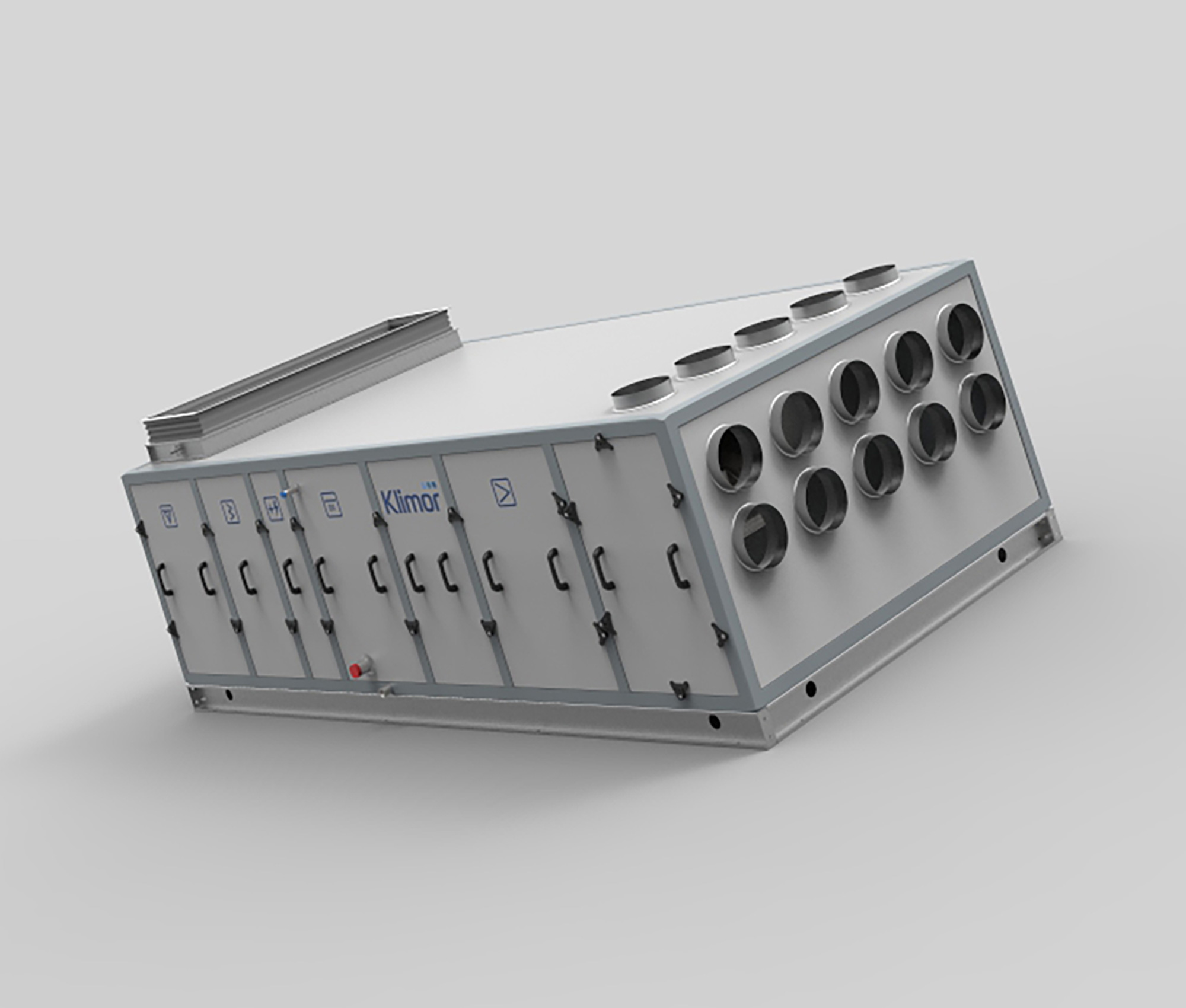

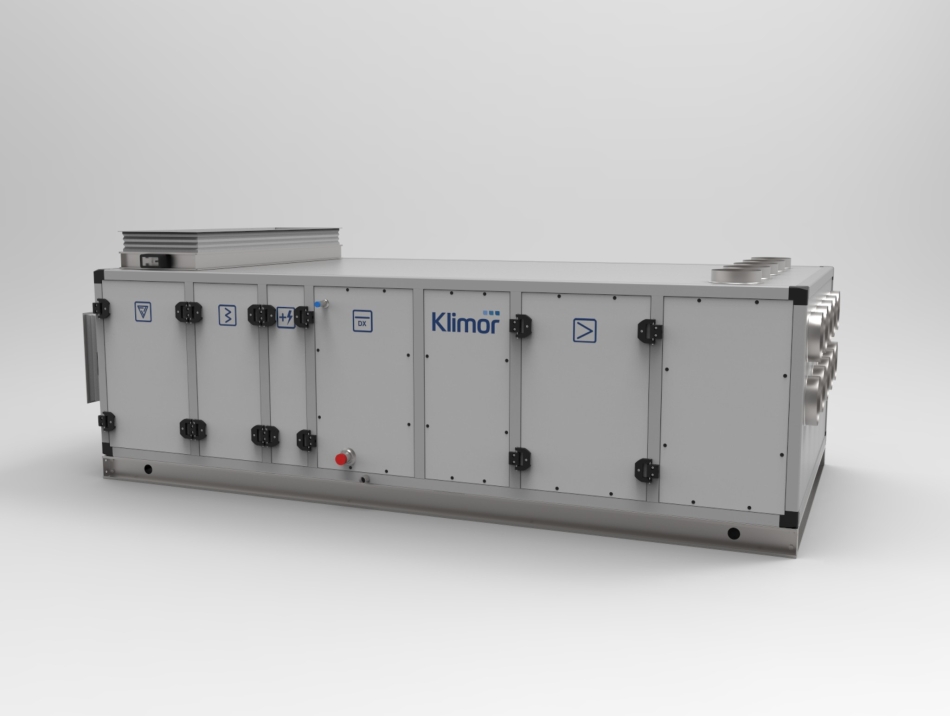

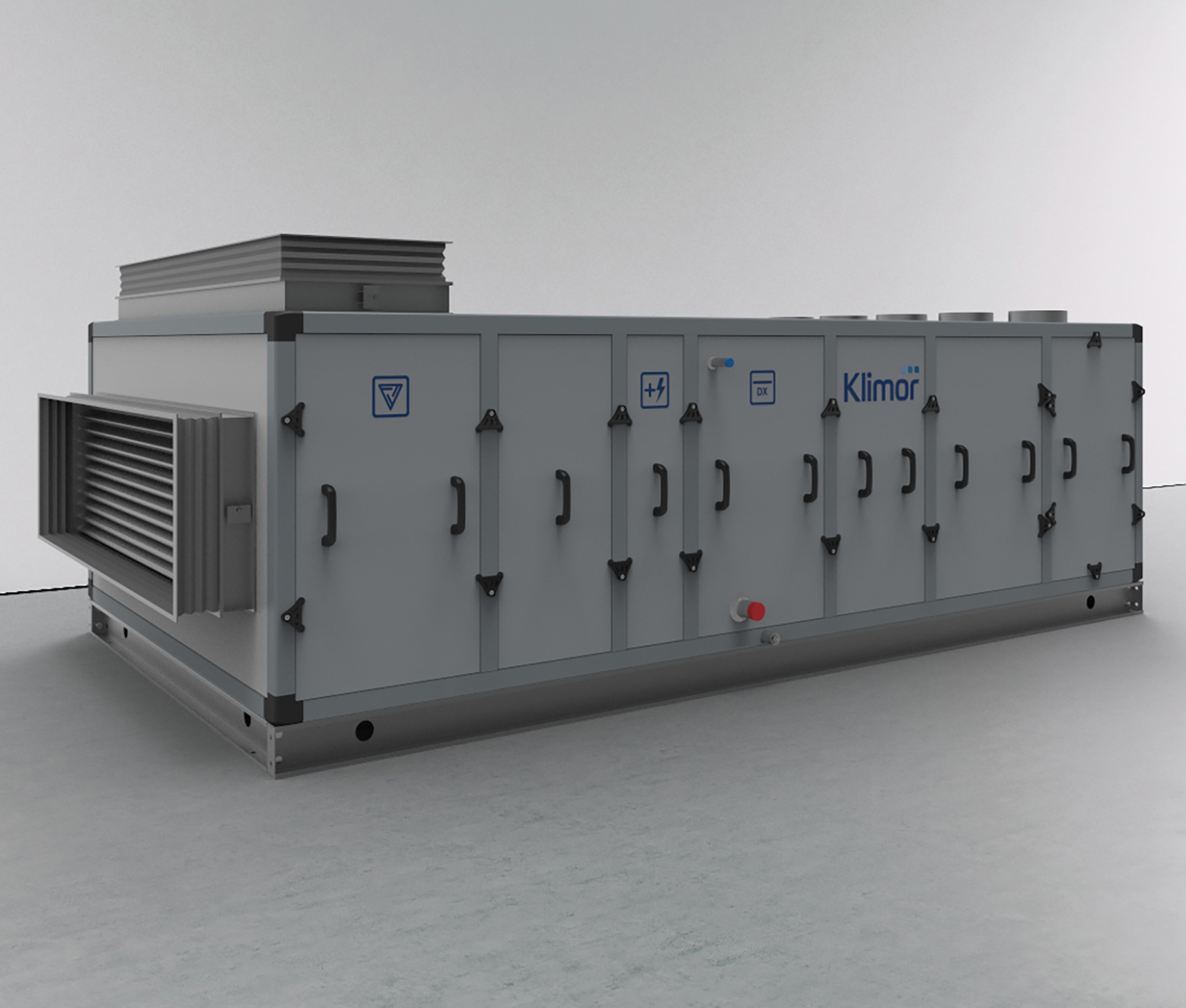

EVO-M

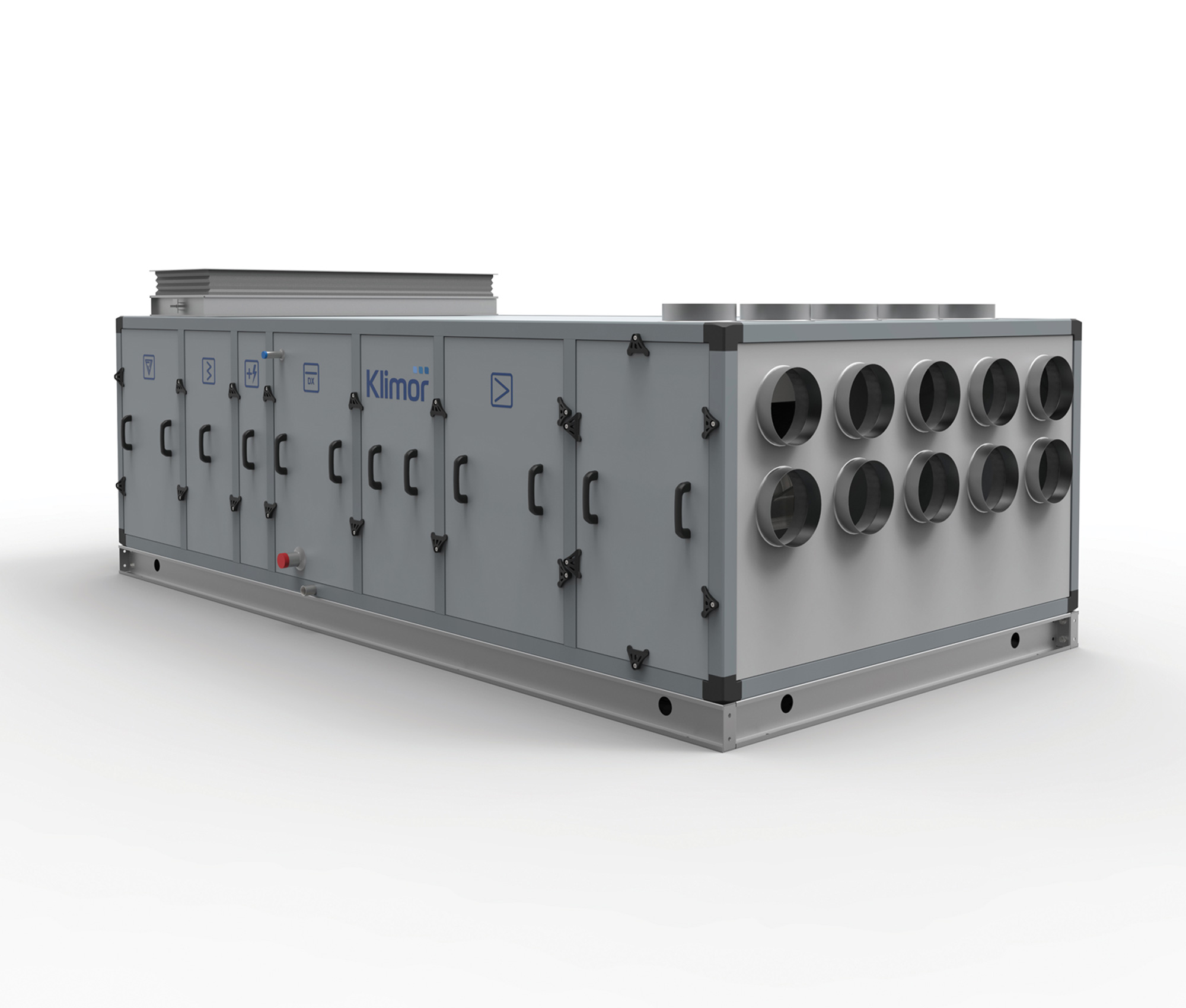

Modular air handling units in maritime execution

Certificates
PL-EN 1886:2008
ISO 13053
ISO 9001
ISO 14001
CE

Selected features of the series EVO-M

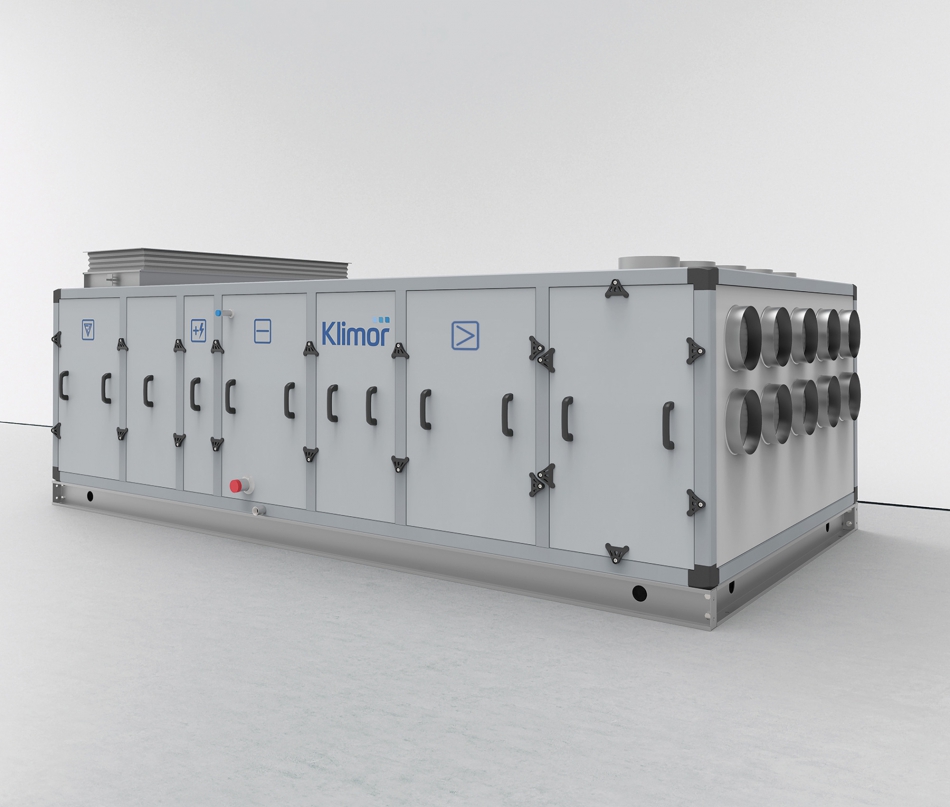

Distribution section
Drain pan
Anticorrosive coating
Electric heater
Insulation

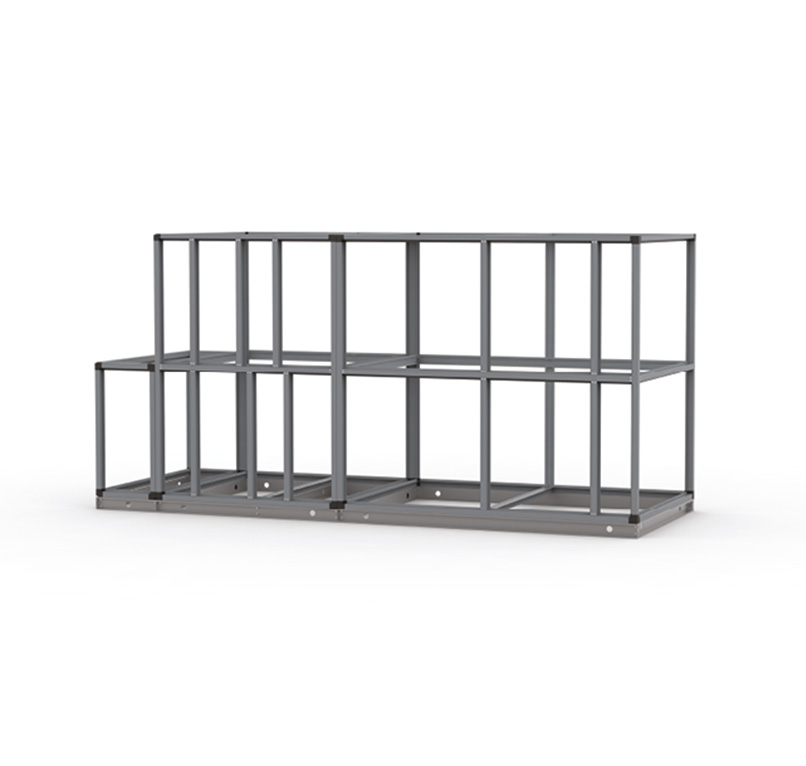

Rogid frame construction

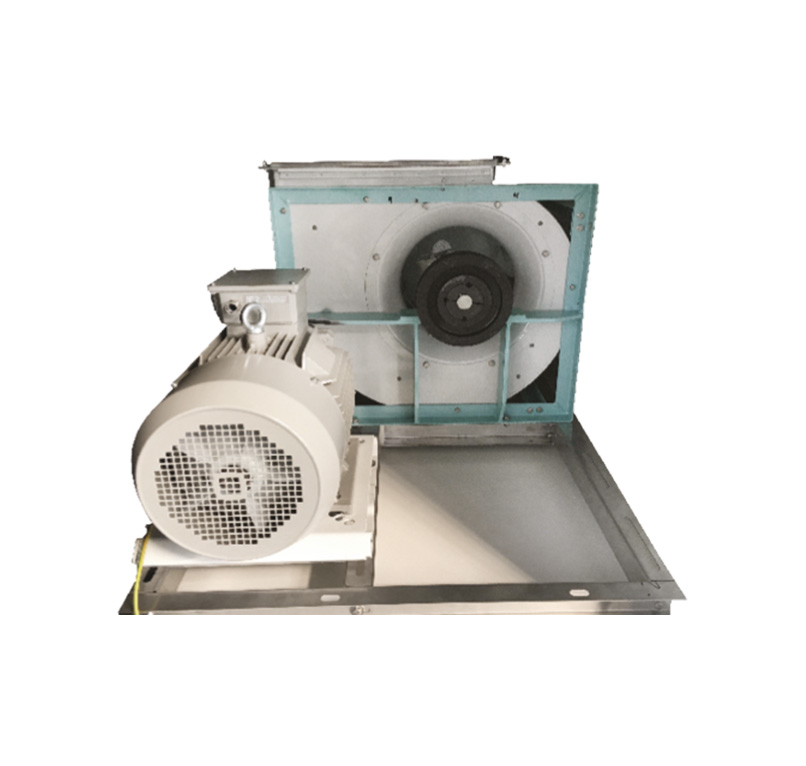

Fan set

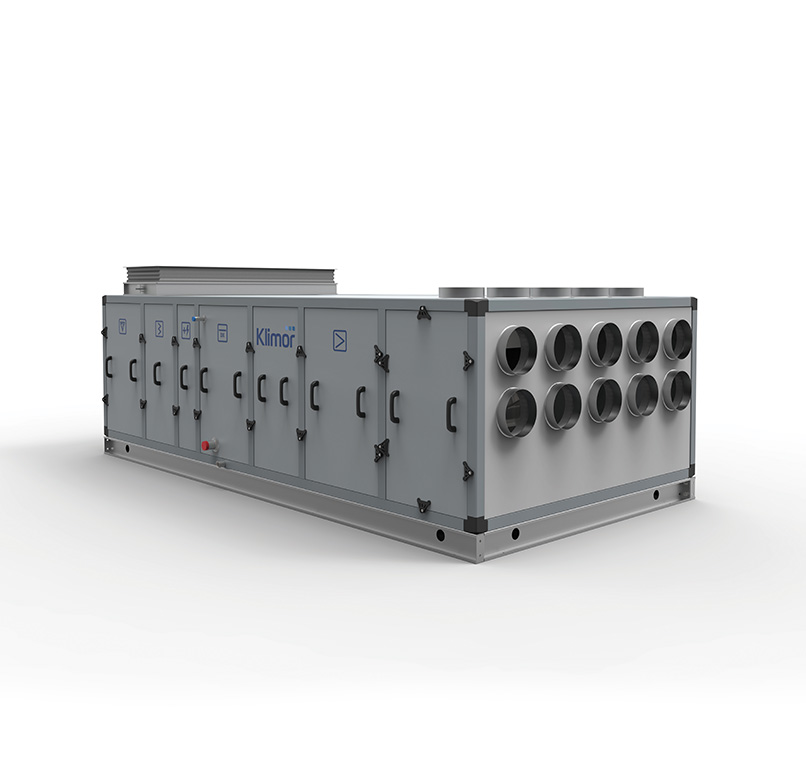

Distribution section

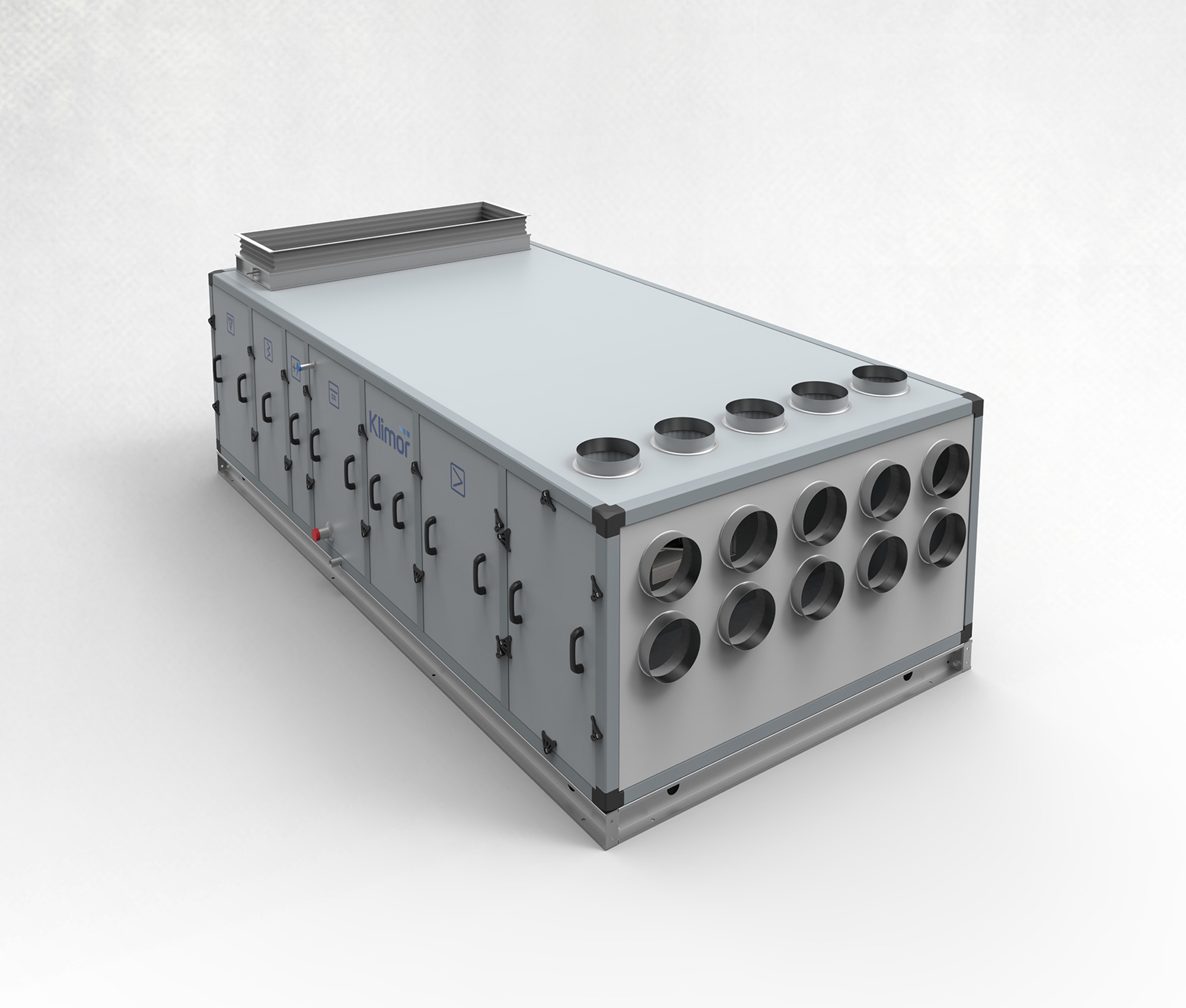

  • Round connection to distribute air to the installaction duct

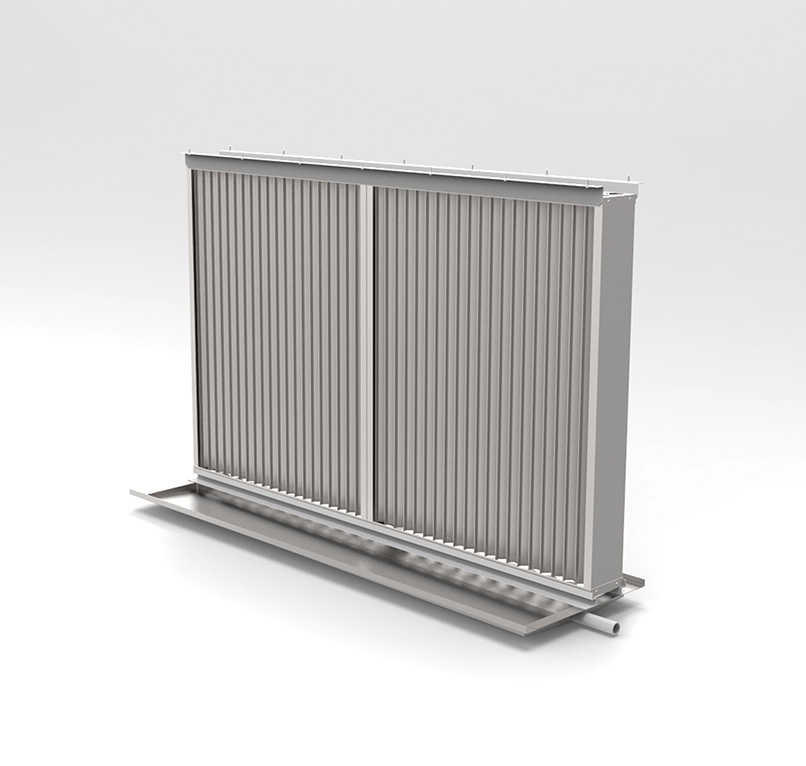

Drain pan
  • Triple sloped
  • Easy maintenance
Anticorrosive coating
  • Galvanised sheet metal: polyester coated / painted

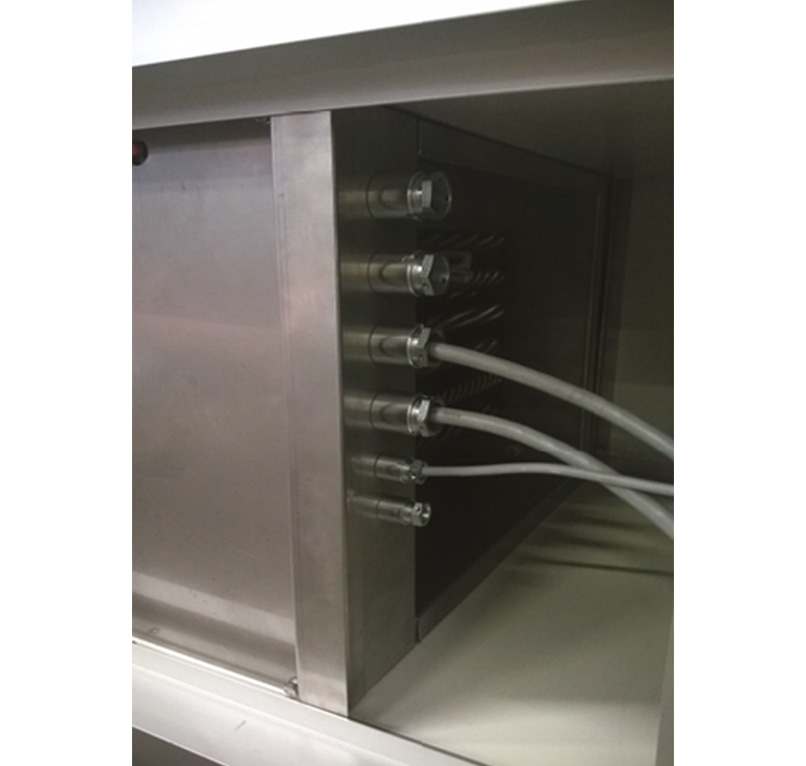

Electric heater
  • Dual thermal protection
  • 60°C - automatic reset
  • 90°C - manual reseta

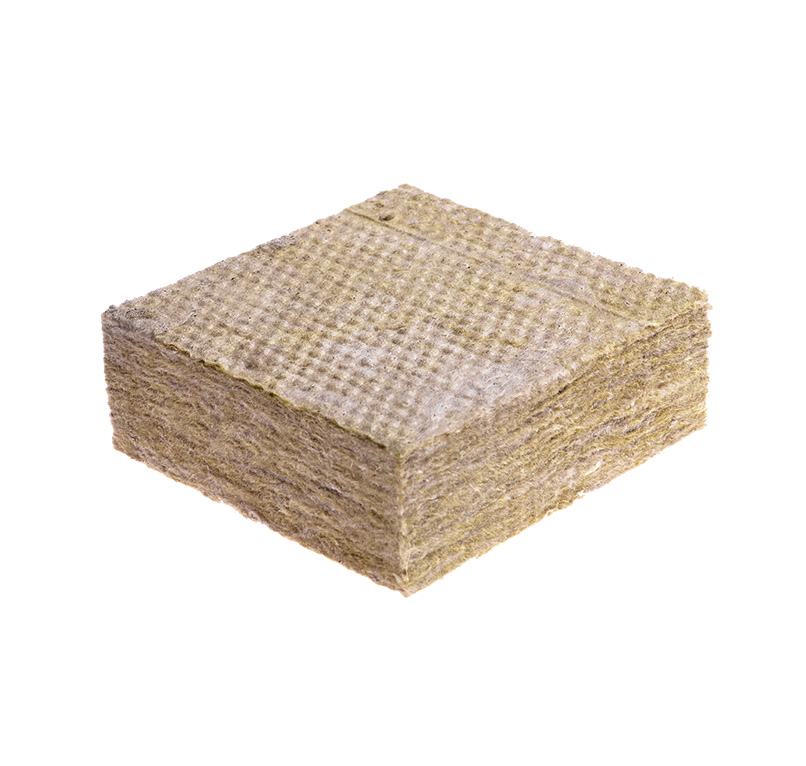

Insulation
  • 50 mm fireproof mineral wool
Rogid frame construction
  • Universal for all sizes
  • Two profile variations: Aluminium or galvanised steel
Fan set
  • Fans with direct drive or belt drive

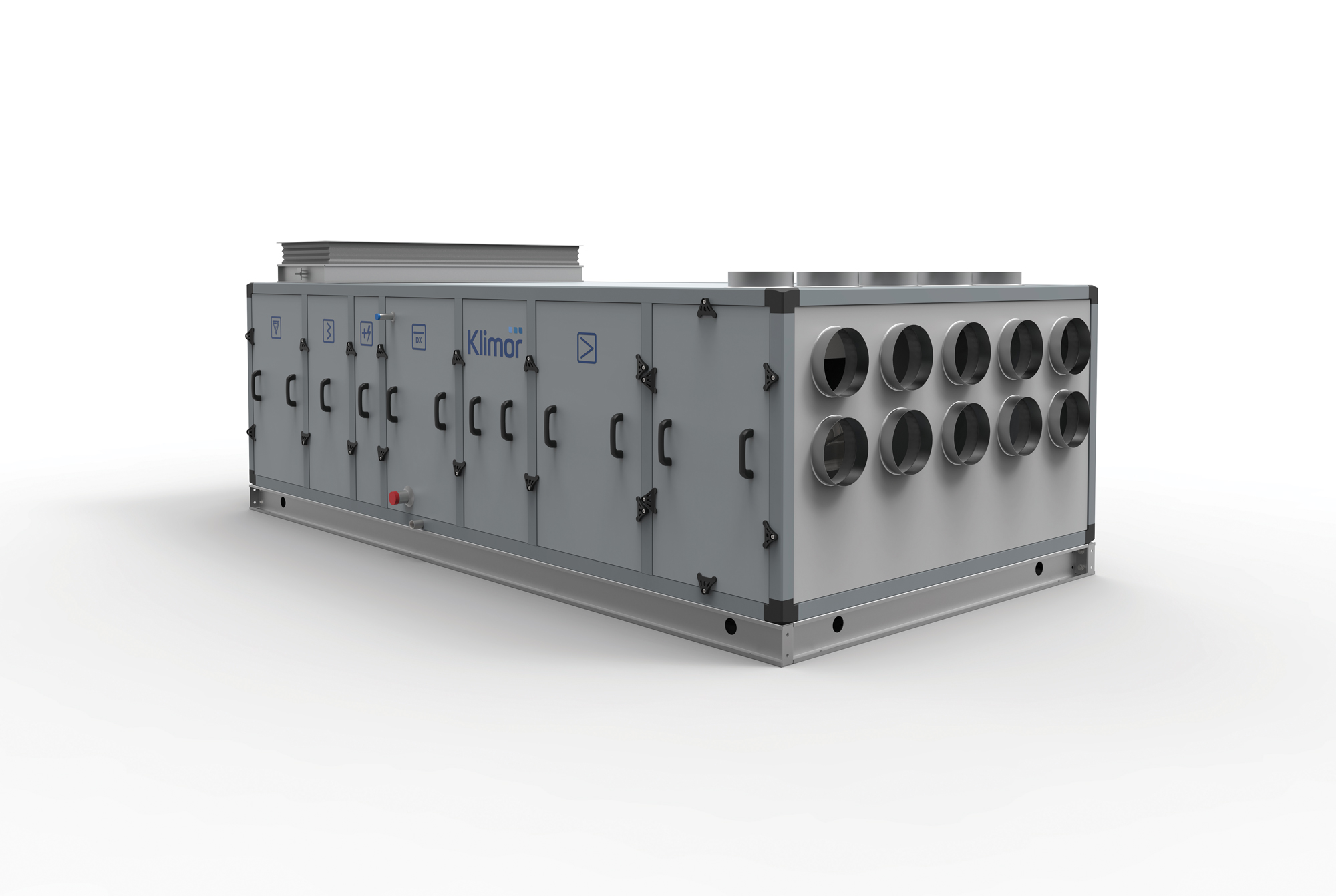

EVO-M components

1
2
3
4
5
6
7
8
1
Framework
  • High corrosion resistant galvanized steel profiles (insulation version 50), aluminium corners.
2
Panels
  • Unique Thermal Brake panels made of galvanized metal sheet 0,7mm thick covered by polyester coating or painting.
  • Bottom panel (floor) made of stainless steel 0,7mm thick Panel thickness of 50mm (floor 70mm) filled with non-combustible mineral wool - A1 class fire protection.
  • Fixed panels riveted to the framework and insulated with sealant | Access panels fixed by clamps, with pull handles.
  • Access panels equipped with profiled gasket.
3
Base frame
  • Foundation foots made from galvanized metal sheet: 5100 ÷ 0300 sizes
  • Base frame made from galvanized metal sheet: 5100 ÷ 0021 sizes
  • Base frame and foundation foots height – 120mm (the trap is included in the height)
4
Drain pan
  • Made of stainless steel, triple sloped, insulated with rubber mat.
  • Recessed in floor.
  • Drainage pipe made of stainless steel pipe, led out to the side through the AHU’s profile beyond the outline.
  • Universal trap for under and overpressure in the place of operation. It is not required to elevate the frame for the pressure of 600Pa.
5
Guide vanes
  • Made of stainless steel
6
Air dampers
  • Standard aluminium construction. The mechanism hidden in the double profile, separated from external factors.
7
Connections
  • Rigid round connectors made of galvanized metal sheet.
8
Additional equipment
  • Dumbo” terminals for pressure switch hoses connection, installed on the AHU’s fixed casing.
  • Porthole – all necessary air treatment function are equipped with porthole
  • ighting – fan section, filter section are equipped with low voltage led technology

Functions performed

Close
Primary filter
PF
Functions and application

application

An air-conditioning and ventilation systems with standard purity requirements as preliminary filter

An air-conditioning and ventilation systems with strict purity requirements as preliminary and secondary filter

An air-conditioning and ventilation systems with standard or strict purity requirements as the final filtration stage

Catching fat particles and heavy pollutants (metal filter)

type

Metal plate filter

G2 - ISO COARSE

Plate filter:

G4 - ISO COARSE

M5 - ISOePM10-70%

Minipleat filter:

M5 - ISOePM10-70%

F7 - ISOePM2,5-60%

F9 - ISOePM1-80%

Bag filter:

M5 - ISOePM10-50%

F7 - ISOePM2,5-65%

F9 - ISOePM1-70%/80%
Construction

metal filter

Multi layer mesh covered on both sides with galvanized steel mesh mounted in 50mm thick frame

Filteration mesh made of galvanized steel

plate filter

Filter textile covered on both sides with galvanized steel mesh

Mounted in 50mm thick frame

Filter textile made of synthetic polyester filaments
minipleat filter

Mini pleat filter packages with hot melt separators

Mounted in 50/100 mm thick frame

Glass or synthetic fabric refill (100% polypropylene)

bag filter

Pockets sewn and placed on wire truss; bags lenght 300/500mm

Mounted in 25mm thick frame; eccentric crimping

Three-layer synthetic non-woven, polypropylene, using micro fibres
Parameters

 (acc. EN 13053+A1:2011 and EN 779:2012)

metal filter

Filtration grade Am: 80%

End pressure drop Δp: 120Pa

Maximum air velocity v: 4,2m/s

Maximum working temperature: 300°C

plate filter

Filtration grade Am: 82% ÷ 92%

End pressure drop: Δp: 150Pa ÷ 200Pa

Maximum air velocity v: 4,2m/s

Maximum working temperature: 90 ÷ 100°C
minipleat filter

Filtration grade Am: 95% ÷ 99%

Final pressure drop: Δp = 150Pa ÷ 200Pa

Maximum air velocity v: 4,2m/s

Maximum working temperature: 80°C

bag filter

Filtration grade Am: 95% ÷ 99%

Final pressure drop: Δp = 200Pa ÷ 300Pa

Maximum air velocity v: 3,7 ÷ 4,6m/s

Maximum working temperature: 90 ÷ 100°C
Close
Water heating coil
WH
Functions and application

Application:

  • Heating of supply air in air conditioning and ventilation systems
  • Heating of process air in industry-grade air conditioning and ventilation systems
Construction
  • Copper tubes; aluminium fins (standard) additionaly protected by epoxy coating (EVO-P)
  • Galvanized metal sheet or stainless (EVO-P) frame
  • Mainfolds and connectors made of copper or steel respectively
  • Exchanger connection stub pipes fitted with drain and vent
  • Number of rows: 1 ÷ 6
  • Distance between fins: 1,8 / 2,0 / 2,5mm
  • Fin thickness: 0,1mm
  • Tube wall thickness: 0,37mm
  • Tube diameter: 3/8” ÷ 5/8”



Exchanger medium connection:

  • Connection stub pipes are on the service side of the unit.
  • Medium connection from top or bottom exchanger in order to maintain medium counter flow direction according to the air flow direction.
Parameters

(Conformance to standards: EN 308, EN 1216, EN 13053)

  • Max. medium temperature: 120°C
  • Max. medium working pressure: 1,6MPa = 16bar (tested 21 bar)
  • Max. permitted air flow speed: v = 4,6m/s
  • Max. glycol content: 50%
  • Min./max. temperature of the air: - 40/60°C
  • Protection: permissible minimum temperature of air downstream heat exchanger is monitored by freezing protection thermostat (optional)
  • Heating capacity, pressure losses, etc. available in KAD software
Close
Secondary filter
SF
Functions and application

application

An air-conditioning and ventilation systems with standard purity requirements as preliminary filter

An air-conditioning and ventilation systems with strict purity requirements as preliminary and secondary filter

An air-conditioning and ventilation systems with standard or strict purity requirements as the final filtration stage

Catching fat particles and heavy pollutants (metal filter)

type

Metal plate filter

G2 - ISO COARSE

Plate filter:

G4 - ISO COARSE

M5 - ISOePM10-70%

Minipleat filter:

M5 - ISOePM10-70%

F7 - ISOePM2,5-60%

F9 - ISOePM1-80%

Bag filter:

M5 - ISOePM10-50%

F7 - ISOePM2,5-65%

F9 - ISOePM1-70%/80%
Construction

metal filter

Multi layer mesh covered on both sides with galvanized steel mesh mounted in 50mm thick frame

Filteration mesh made of galvanized steel

plate filter

Filter textile covered on both sides with galvanized steel mesh

Mounted in 50mm thick frame

Filter textile made of synthetic polyester filaments
minipleat filter

Mini pleat filter packages with hot melt separators

Mounted in 50/100 mm thick frame

Glass or synthetic fabric refill (100% polypropylene)

bag filter

Pockets sewn and placed on wire truss; bags lenght 300/500mm

Mounted in 25mm thick frame; eccentric crimping

Three-layer synthetic non-woven, polypropylene, using micro fibres
Parameters

 (acc. EN 13053+A1:2011 and EN 779:2012)

metal filter

Filtration grade Am: 80%

End pressure drop Δp: 120Pa

Maximum air velocity v: 4,2m/s

Maximum working temperature: 300°C

plate filter

Filtration grade Am: 82% ÷ 92%

End pressure drop: Δp: 150Pa ÷ 200Pa

Maximum air velocity v: 4,2m/s

Maximum working temperature: 90 ÷ 100°C
minipleat filter

Filtration grade Am: 95% ÷ 99%

Final pressure drop: Δp = 150Pa ÷ 200Pa

Maximum air velocity v: 4,2m/s

Maximum working temperature: 80°C

bag filter

Filtration grade Am: 95% ÷ 99%

Final pressure drop: Δp = 200Pa ÷ 300Pa

Maximum air velocity v: 3,7 ÷ 4,6m/s

Maximum working temperature: 90 ÷ 100°C
Close
Water cooling coil
WC
Functions and application
  • Cooling of supply air in air conditioning and ventilation systems
  • Cooling of process air in industry-grade air conditioning and ventilation systems
  • Dehumidyfing of process air in industry-grade air conditioning and ventilation systems
Construction
  • Copper tubes; aluminium fins (standard) additionaly protected by epoxy coating (EVO-P)
  • Galvanized metal sheet or stainless (EVO-P) frame
  • Mainfolds and connectors made of copper or steel respectively
  • Exchanger connection stub pipes fitted with drain and vent
  • Number of rows R: 2÷12
  • Distance between fins: 2,5 mm
  • Fin thickness: 0,1mm
  • Tube wall thickness: 0,37 mm
  • Tube diameter: 3/8” ÷ 5/8”
  • Droplet eliminator mounted downstream after the cooler
  • Triple sloped drain pan made of stainless steel, buil-in AHU floor
  • Drain pan equipped with polypropylene ball siphon
Parameters

(Conformance to standards: EN 308, EN 1216, EN 13053)



  • Min. temp. of the medium: +2°C*
  • Max. working pressure of the medium: 1,6MPa = 16bar (tested 21 bar)
  • Max. glycol content: 50%
  • Max. permitted air velocity: v = 4,0 m/s
  • Cooling capacity, pressure drop, etc. available in KAD
Close
Direct expansion cooling coil
DX
Functions and application
  • Cooling of supply air in air conditioning and ventilation systems
  • Cooling of process air in industry-grade air conditioning and ventilation systems
  • Dehumidyfing of process air in industry-grade air conditioning and ventilation systems
Construction
  • Copper tubes; aluminium fins (standard) additionaly protected by epoxy coating (EVO-P)
  • Single (100%) or double section heat exchanger
  • Galvanized metal sheet or stainless (EVO-P) frame
  • Number of cooler rows R: 2÷10
  • Distance between fins: 2,5mm
  • Fin thickness: 0,1mm
  • Tube wall thickness: 0,37mm
  • Tube diameter: 3/8” ÷ 5/8”
  • Droplet eliminator mounted downstream after the cooler
  • Triple sloped drain pan made of stainless steel, buil-in AHU floor
  • Drain pan equipped with polypropylene ball siphon



Exchanger medium connection

  • Connection stub pipes are on the service side of the unit.
  • Medium connection from top of the exchanger independent of air flow direction
Parameters

(Conformance to standards: EN 308, EN 1216, EN 13053)



  • Min. evaporating temperature of cooling medium evaporation: +3°C*
  • Max. working pressure of the medium up to 2,8MPa = 28bar (tested 32bar)
  • Max. permitted air velocity v = 4,1m/s
  • You can select an exchanger suitable for wide range of refrigerants: R134a, R407c, R410a…
  • Cooling capacity, pressure drops, etc. available in KAD selection software
Close
Fan set
VF
Functions and application

Application

  • Low and medium pressure ventilation and air-conditioning systems with overall pressures up to 2 000Pa
  • Medium pressure ventilation and air-conditioning systems with overall pressures up to 3 000Pa (marine industry EVO-M)
  • Applied as a single or multi fan (up to 6 fans sets) solution depends on AHU size and pressure drop



Type

  • AC fan set: SWSI centrifugal fan without casing, one-way suction, PLUG type, with backward curved blades
  • EC fan set: SWSI centrifugal fan without casing, one-way suction, PLUG type, with backward curved blades
  • AC fan set (EVO-M marine execution): DWDI centrifugal fan with casing, two-way suction, with backward curved blade
Construction

AC fan set

  • Fan and motor set on common frame, insulated from unit structure by rubber shock absorbers
  • Direct drive – impeller mounted on motor shaft
  • TEFC single speed motors conforming to IEC standard
  • Suitable for supplying by VFD (variable frequency drive) – optional accessory



EC fan set

  • Fan and motor set on common frame assemled directly to AHU diaphragm
  • Direct drive – impeller mounted on motor shaft
  • Single speed motors conforming to IEC standard
  • Built- in speed amd monitoring controller



AC fan set (EVO-M marine execution)

  • Fan & motor set on common frame, insulated from unit structure by rubber shock absorbers belt drive
  • TEFC marine executiony single speed or two speed motors conforming to IEC standard
  • The motor assambled on tension support
  • Suitable for supplying by VFD (variable frequency drive) – optional accessory
  • The construction and fan epoxy coated protected



Parameters

AC fan set

  • Rated voltage: 3x400V / 50Hz
  • Rated power: 0,75 kW ÷ 15 kW
  • Protection type: PTC
  • Motor winding insulation class: F (matching with frequency converter)
  • Bearing lifecycle: L10 = 20000h / L50 = 100000h
  • Protection class: IP55
  • Efficiency class: IE2 / IE3
  • VFD output frequency range: 10 -100 Hz
  • Min. / max working temperature: -30°C ÷ 55°C



EC fan set

  • Rated voltage: 1x230V / 3x400V / 50Hz
  • Rated power: 0,5 kW ÷ 11,9 kW
  • Motor winding insulation class: B/F respectively (matching with EC controller)
  • Bearing lifecycle: L10 = 40000h / L50 = 200000h
  • Protection class: IP54 / IP55 respectively
  • Efficiency class: above IE3
  • A corresponding sensor with standard analogue output (0 ÷ 10 V or 4 ÷ 20 mA)
  • The open protocol standard RS485 MODBUS-RTU
  • Min. / max working temperature: -25°C ÷ 60°C



AC fan set (EVO-M marine execution)

  • Rated voltage: 1x230 / 3x400V / 3x440 / 3x690 - 50/60Hz
  • Rated power: 0,75 kW ÷ 22,5 kW
  • Protection type: PTC
  • Motor winding insulation class: F (mating with frequency converter)
  • Bearing lifecycle: L10 = 20000h / L50 = 100000h
  • Protection class: IP55
  • Efficiency class: IE2
  • VFD output frequency range: 10 ÷ 100 Hz
  • Min. / max working temperature: -30°C ÷ 55°C



POWER COEFFICIENT DEPENDS ON WORKING TEMPERATURE

Max. ambient temp. °C

30

35

40

45

50

55

60

P/PN %

105

102

100

97

93

87

82
Close
Electrical heater
EH
Functions and application
  • Heating of supply air in air conditioning and ventilation systems
  • Heating of process air in industry-grade air conditioning and ventilation systems
  • Preheating air in air hanglin units
Construction
  • Single or multi-stage heating components
  • Radiator heaters combined in groups
  • Casing: framework made of galvanized metal sheet
  • Connection to terminal strip
  • Overheating protection thermostat (standard)



Exchanger connection

  • Connecting the wires to the terminal strip of the heater are on the service side of the unit
Parameters
  • Rated voltage: 3 x 400V
  • Min. / max. rating capacity: 4 ÷ 168kW
  • Permitted min. air velocity: v = 1,5m/s
  • Max. permissible ambient temperature around heating components: 65°C
Close
Rotary heat exchanger
RR
Functions and application

Application

  • Indirect sensible energy recovery. Humidity transfer by condensation is ensured as soon as the exhaust air in the heat wheel is cooled down below to the dew point.
  • Indirect sensible and latent energy recovery from the exhausted air stream and transfering of heat and humidity to flowing supply air stream
  • Energy recovery without full separation of supply and exhaust air streams
  • Using in combined supply and exhaust units



Type

  • Sensible
  • Hygroscopic
Construction

Sensible

  • Rotor made of aluminium strips/sheets forming small channels
  • VFD speed controlled belt transmission – controlling recovery degree and freezing protection for humidity condensing on rotor
  • Purification lock, reducing the quantity of “contaminated” exhaust air to the supply section of the unit
  • Brush sealing at the rotor perimeter and on connections protects against additional air leaks
  • Undivided rotor matix up to fi 2 300mm or casing height 2 500mm



Hygroscopic

  • Rotor made of aluminium strips/sheets coated with hygroscopic layer
  • VFD speed controlled belt transmission – controlling recovery degree and freezing protection for humidity condensing on rotor
  • Purification lock, reducing the quantity of “contaminated” exhaust air to the supply section of the unit
  • Brush sealing at the rotor perimeter and on connections protects against additional air leaks
  • Undivided rotor matix up to fi 2 300mm or casing height 2 500mm



Parameters

(Conformance to standards: EN 308, EN 13053)



Sensible

  • Efficiency: up to 85%
  • Heat-exchanger tightness for rated working parameters up to 97%
  • Max. air velocity: 4,5m/s
  • Rotor rotational speed: 10rpm
  • Max pressure drop: 450Pa
  • Min. / max. working temperature: -30°C ÷ 70°C



Hygroscopic

  • Efficiency: up to 85%
  • Heat-exchanger tightness for rated working parameters up to 97%
  • Max. air velocity: 4,5m/s
  • Rotor rotational speed: 10rpm
  • Max. pressure drop: 450Pa
  • Min. / max. working temperature: -30°C ÷ 70°C
Close
Silencer
SL
Functions and application

Application

  • Installed in-to the AHU to ensure noise reduction downstream of the fan set



Type

  • SLC_STD (standardowy)
  • SLC_HEFF (wyższa skuteczność)
Construction
  • The block is fitted with silencing cartridges made of non-flammable mineral wool, 100 or 200mm thick
  • The surface of wool insert protected with veil
  • Mineral wool fulfillment is built by galvanized metal sheet frame (add. pliester coated EVO-H)
Parameters

Max. permitted air velocity: v = 4,5m/s

Accesories

Roof / Intake / Outtake

  • For outside unit is delivered roof and component of the intake and outtake
  • Components with water drainage to the side opposite from the viewing side can be additionally installed on AHU



Door Locks and Handles

  • Easy to use door locks and handles ensure safe unit maintenance



Inspection window

  • Inspection window enables to observe unit‘s internal operation. The diameter of plastic porthole is 200mm
  • The porthole could be use with darkwork (in option)



Internal lighting

  • Internal lighting enables to observe unit‘s internal operation through inspection window.
  • Economy light is used with switch outside the unit
Close
Empty section
ES
Close
Mixed section
MX
Close
Humidifier
HS
Functions and application

Application

  • Purpose of the humidifier is ensuring comfort by supplying adequate humidity content (relative humidity)
  • Industry application
  • Medical aplication
  • Minimal effect on dry-bulb (DB) temperatures
  • Easy to use: backlit LCD for clear understanding of the unit status and diagnostics
  • Reliability: cylinders with quick power connectors for easy, fast and risk-free maintenance
  • Performance: the unit starts faster and reaches the set point much quicker
  • Connectivity: integrated Modbus® communication protocol



Type

  • Immersed electrode steam humidifier at atmospheric pressure
  • Direct steam humidifier separator type
Construction

Immersed electrode steam humidifier at atmospheric pressure

  • Galvanized metal sheet casing in outdoor and indoor execution respectively
  • Plastic water cyilinders
  • Complete control system with the HMI
  • Set of linear stainless steel distributors
  • Steam hoses
  • Condensate drain hose
  • Antifreeze electrical heater (outdoor execution)
  • Cooling fan (outdoor execution)
  • Drain pump kit



Direct steam humidifier separator type

  • Integral control valve
  • Drying chamber
  • Separating chamber
  • Set of linear jacketed stainless steel distributors
  • Set of steam trap
  • Antifreeze electrical heater (outdoor execution)
  • Cooling fan (outdoor execution)
Parameters

Immersed electrode steam humidifier at atmospheric pressure

  • Efiiciency adjustment:
  • Rated instant steam production: 10 ÷ 130 kg
  • Rated voltage: 3 x 400V / 50Hz
  • Rated capacity of generator: 7,5 ÷ 97 kW
  • Max. permitted air velocity: v = 4 m/s



Direct steam humidifier separator type

  • Efficiency adjustment: ± 10%
  • Control signal: 0 ÷ 10V (24V AC)
  • Recommended steam pressure: 0,8 MPa
  • Pressure range: 0,15 ÷ 4 bar
  • Max. permitted air velocity: v = 4 m/s





Water parameters



Min.

Maks.

Min.

Maks.

Pressure

MPa

0,1

0,8

0,1

0,8

Temperature

°C

1

40

1

40

Type of water

normal water

low salinity water

Specific conductivity at 20°C

uS/cm

350

1250

75

300

Total dissolved solids (cR)

mg/l

0,65 * conductivity 20°C

Dry residue at 180°C (R180)

mg/l

0,93 * conductivity 20°C

Total hardness (TH)

mg/l CaCO3

100

400

50

150

Temporary hardness

mg/l CaCO3

60

300

30

100

Iron + Manganese

mg/l Fe+Mg

-

0,2

-

0,2

Chlorides

mg/l Cl

-

30

-

20

Silica

mg/l Si02

-

20

-

20

Residual chlorine

mg/l Cl-

-

0,2

-

0,2

Calcium sulphate

mg/l CaSO4

-

100

-

60

Metallic impurities

mg/l

-

0

-

0
Solvents, thinners, detergents, lubricants

mg/l

-

0

-

0

Solubility (cR)

mg/l

100

400

50

150
PF
Primary filter
WH
Water heating coil
SF
Secondary filter
WC
Water cooling coil
DX
Direct expansion cooling coil
VF
Fan set
EH
Electrical heater
RR
Rotary heat exchanger
SL
Silencer
ES
Empty section
MX
Mixed section
HS
Humidifier

Application

Freight ships
Fishing vessels
Freight/passenger ferries
Research and military vessels
Auxiliary vessels such as tugs

Technical data

SIZE

VMIN

VOPT

VMAKS

EXTERNAL DIMENSIONS

SUPPLY OR EXHAUST UNITS

SUPPLY EXHAUST UNITS

W

H

HTOT

W1

H1

H1TOT

5100

778

1450

3499

700

500

620

1400

950

1070

3200

1102

2250

4957

950

500

620

1900

950

1070

5200

1210

2200

5443

700

700

820

1400

1350

1470

0300

1408

2800

6334

950

600

720

2400

1150

1270

0400

1822

3750

8197

1200

600

720

2400

1150

1270

2500

2419

500

10886

1300

700

8920

2600

1350

1470

3500

2 479

4 900

11 154

950

950

1070

1 900

1 850

1 970

0600

2 851

5 900

12 830

1 300

800

920

2 600

1 550

1 670

0700

3 326

7 000

14 969

1 500

800

920

3 000

1 550

1 670

5800

4 082

8 300

18 371

1 500

950

1070

3 000

1 850

1 970

8800

4 198

8 000

18 889

1 200

1 200

1 320

2 400

2 350

2 470

0010

4 666

9 700

20 995

1 700

950

1 070

3 400

1 850

1 970

5010

5 011

9 800

22 550

1 300

1 300

1 420

2 600

2 550

2 670

5310

6 487

13 400

29 192

1 800

1 200

1 320

3 600

2 350

2 470

Files to download

Klimor Air Designer

The web-based software offers a quick selection of products according to the specific design requirements. The software provides users with all necessary technical information.
Go to the configurator
